These are real field results from installations of the mechanical APR Control and the electronic APR‑E Valve. Each summary below captures the key outcome, and links to the full write-up for the job.
Every figure below is as-measured or as-reported from the field.
Precision Temperature & Humidity
Stratus Cultivation Facility
BAS trendlog data from a licensed grow facility: the APR‑E Valve on discharge-air control held ±0.88°F, a 0.128 kPa VPD range, and ±1.5% RH on standard split-system DX, through the light and dark cycles.
Indoor Agriculture · Field Trendlog Data
Virginia Healthcare Field Study
A 3-month independent side-by-side field study on two identical rooftop units. APR modulation cut total compressor starts 77% (951 to 218), held ~53% RH all summer, with zero failures since install.
Healthcare · Independent Field Study
Harvard Laser Labs
2-ton R-22 rooftop units on 100% outside air could not hold temperature or humidity for optical-table alignment, and the mirrors fogged. The APR Control delivered 15+ years of stable operation and survived an R-22 to R-407C refrigerant conversion.
Laboratories · APR Control
F1 and INDYCAR Test Lab
A 3-ton unit ran over 80% RH from short runtimes. The APR Control modulated roughly 3 tons down to about 1 ton and held 47 to 53% RH.
Laboratories · APR Control
ASHRAE Cleanroom Research (RP-1604)
Demand-based particle control across ISO Class 8 to Class 1 cleanrooms ran on a single-stage unit. The APR‑E Valve held discharge air to about ±1°F.
Cleanrooms · APR‑E Valve
Angiotech
An APR‑E7 sat on the lead 10-ton circuit of a 40-ton system. It modulated 70% to a 55°F discharge-air setpoint and held 45 to 50% RH all summer.
Cleanroom & Office · APR‑E Valve
Tower Radiology
MRI and PET-CT rooms swing from full load to idle. The APR Control holds roughly 68 to 72°F and 48 to 52% RH in compliance-critical spaces, with 20+ years of reliability across many locations.
Medical Imaging · APR Control
Pharmaceutical Packaging
A compliance-critical 100% outside-air system short cycled at 65% RH and 68°F. An APR Control retrofit dropped RH to 45% at 68°F in about one day.
Pharmaceutical · APR Control
Humidity, Reliability & Retrofits
Restaurant Modular Chiller
A badly oversized 120-ton modular chiller with four 30-ton compressors short cycled with alarms and lockouts. An APR Control on each 30-ton circuit gave 20 tons of modulation, about 67% turndown, eliminating the short cycling and lockouts and avoiding a costly tanks, pumps, and re-piping alternative.
Chillers & Restaurants · APR Control
Emergency Cold Storage
Portable cold-storage trailers using standard wall DX risked coil freeze-up at very low load. The APR Control holds suction pressure to keep the coil above freezing, and it is valued for immediate availability with no lead time.
Cold Storage · APR Control
MIT Mixed-Use
An oversized unit short cycled with high humidity in a mixed-use building housing a gallery, dance studio, and offices. The APR Control brought stable temperature and humidity and extended equipment life.
Mixed-Use · APR Control
TV Station Newsroom
A single-zone VAV system dropped discharge air below design, with coil icing and floor condensation, and it needed whisper-quiet operation. The APR Control delivered chilled-water-like performance at a fraction of the cost.
Broadcast · APR Control
Oak Ridge Center for Manufacturing Technology
A government energy test ran on the lead 6.25-ton stage of a 12.5-ton self-contained unit. The APR Control measured about 20% efficiency gain.
Government & Industrial · APR Control
Saskatoon Public Schools
District HVAC upgrades called for better comfort and reliability on tight budgets. The APR Control supports steadier operation across the district's equipment.
Schools · APR Control

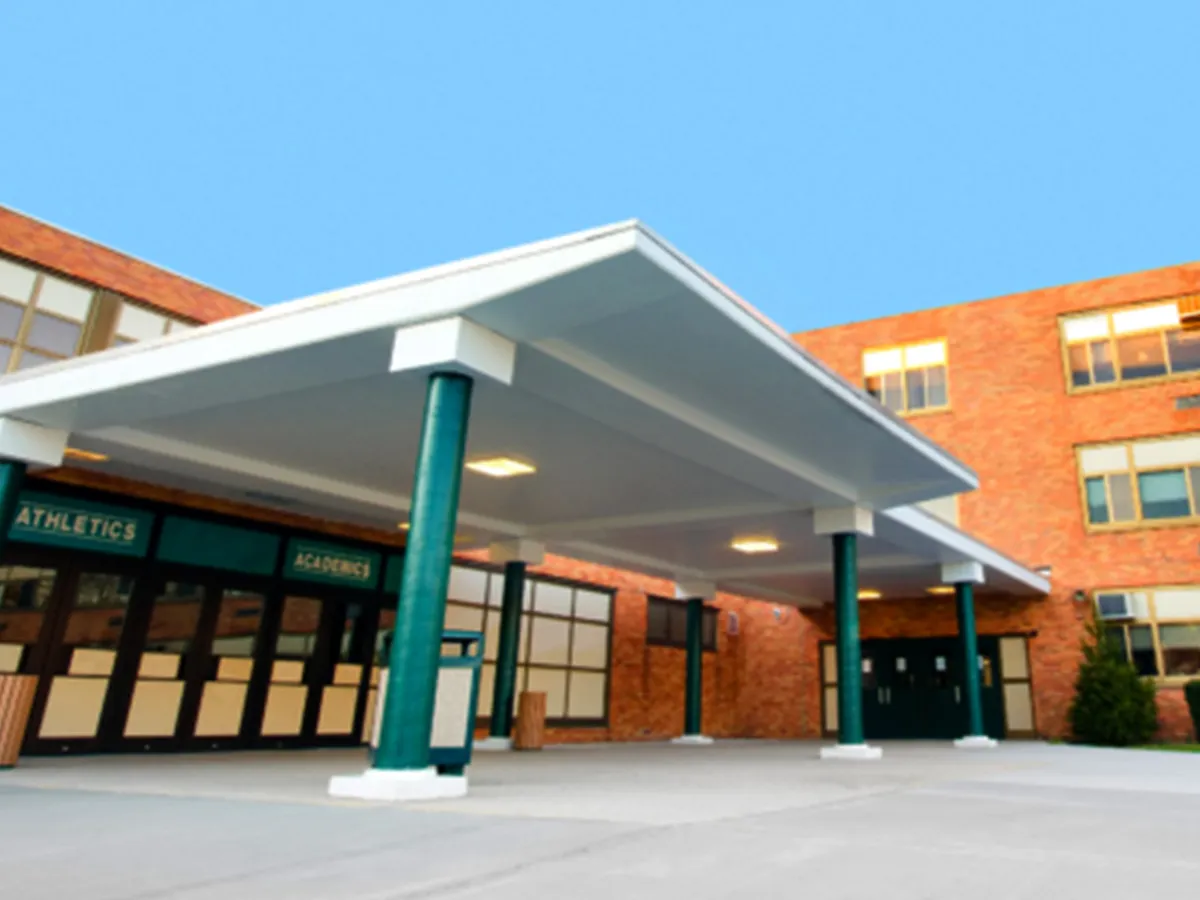

Nodaway School Retrofit
A school HVAC retrofit aimed to improve comfort and ventilation-driven reliability. The APR Control adds modulation to help the equipment hold conditions.
Schools · APR Control

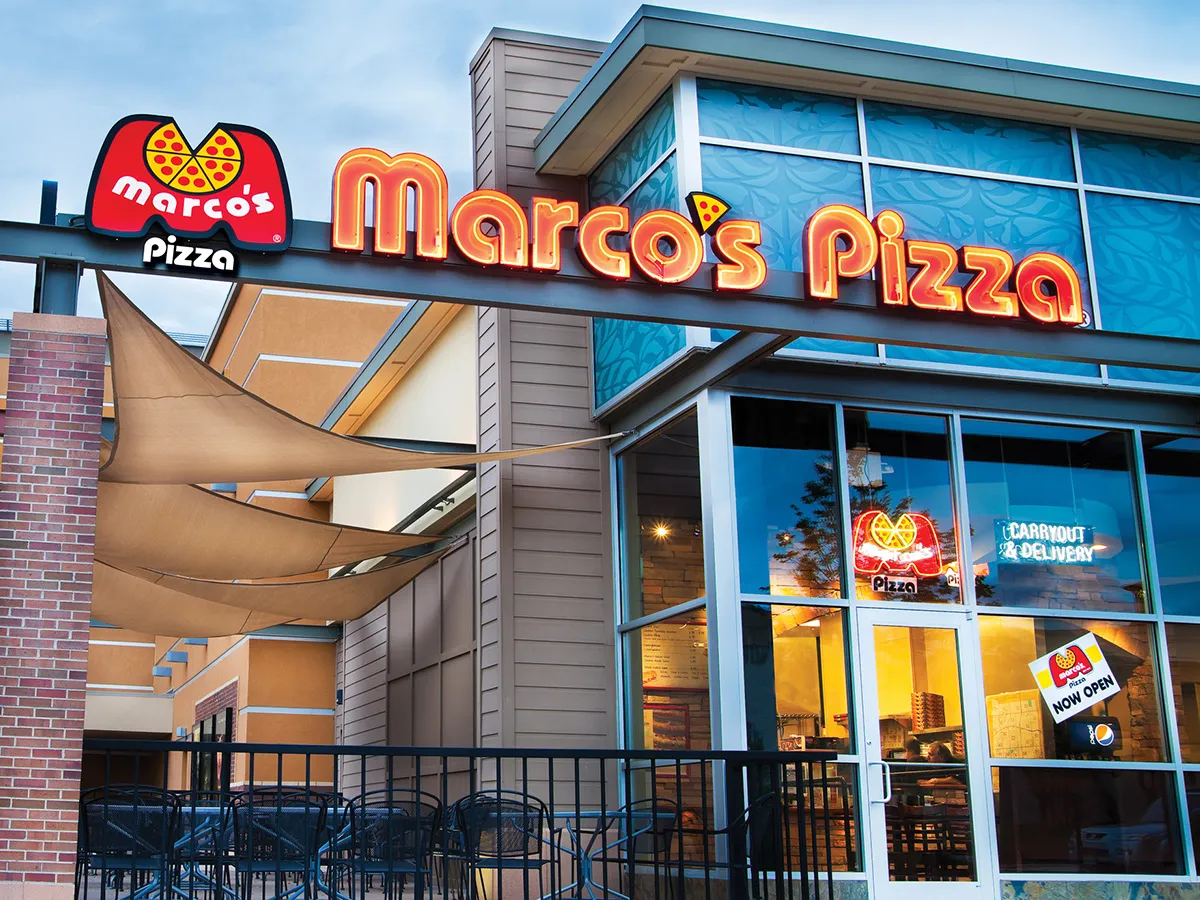

Marco's Pizza
A restaurant with high, variable loads needed steady comfort and fewer breakdowns. The APR Control modulates to the load for more consistent operation.
Restaurants · APR Control
